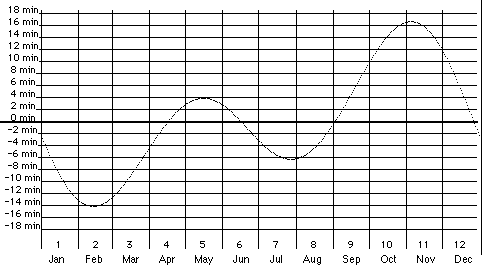

          The Equation of Time is the difference between the time determined by a sundial and the clock time. It is due to the obliquity of the Earth's axis and the unequal motion of the Earth (ellipse). The value, computed for 12:00 UT, is between -14 :20 min (near Feb 12) and +16:24 min (near Nov 4).
  |


Equation
of time and length of solar day:
(for
2001)
|

  |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

|
          |

          |

          |

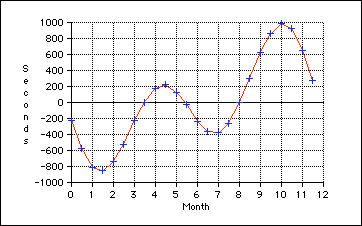

Equation of Time

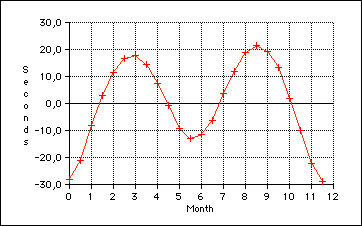

Length of Solar Day
|
          |

|
          Equation of Time (Royal Greenwich Observatory Information Leaflet)  |
