Astronomical Gearing

Al-Biruni's mechanical calendar



Instruments carrying gearings of toothed wheels (cogwheels) were used in the Late Antike or Byzantine period as calendrical devices, some of them displaying the phase (age) of the Moon, its position in the zodiac, and the position of the Sun in the zodiac.

A calendrical device with eight
cogwheels was described by the Persian Muslim scholar and polymath al-Biruni (978-1048).

moon

The rotating Moon disc: 59 days rotation period, corresponding to 29.5 days for the synodic month.

The rotation period of the wheel (V, 39 cogs) for the sidereal month:

sidereal month ration

The rotation period of blue wheel (VIII, 60 cogs):

ratio

The rotation period of the red wheel (VI, 49 cogs) for the year:

tropical
                  year


average duration gears error
synodic month
29.530589 days 29.5 days
0.10 %
sidereal month
27.321661 days 27.3 days
0.08 %
tropical year
365.24219 days
365.17895 days
0.02 %



gears average
62 synodic month
62*29.5 d =
1829.0 d
1830.90 d
67 sidereal month
67*27.3 d =
1829.1 d
1830.55 d

5 years  2 d
5 years  4.5 d



full moon
                              2011
2011 Feb 18, UT 23:00
Full Moon in Leo
2016 Feb 22, UT 23:00
Full Moon in Leo

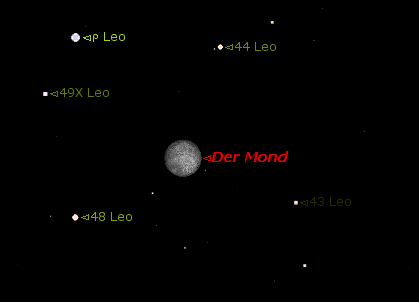

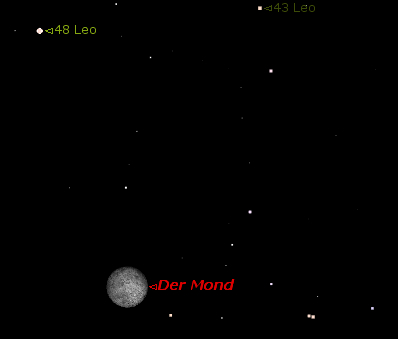

1830 days later (5 years 4 days) the position of the full Moon is almost the same with respect to the fixed stars.

Full Moon
JD Diff days
Long. Moon
Diff Long. Long. Sun Diff Long.
1996 Jan 05 UT 22:08
2450088.369 - 104.80° -
284,86° -
2001 Jan 09 UT 20:24 2451919.350 1830.98 109.65° 4.85° 289,65° 4.80°
2006 Jan 14 UT 09:48 2453749.908 1830.56 114.08° 4.44° 294,09° 4.43°
2011 Jan 19 UT 21:21 2455581.390 1831.48 119.45° 5.36° 299,45° 5.37°
2016 Jan 24 UT 01:46 2457411.573 1830.18 123.49° 4.04° 303,49° 4.04°
2021 Jan 28 UT 19:16 2459243.303 1831.73 129,09° 5.60° 309,09° 5.60°

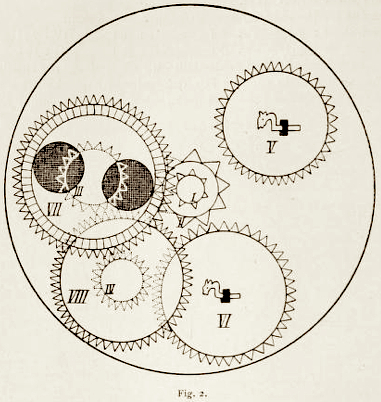

Al-Biruni's Moon Box:
from Wiedemann

Al Biruni moon Box


Biruni moon box mechanical
            calendar cogwheels

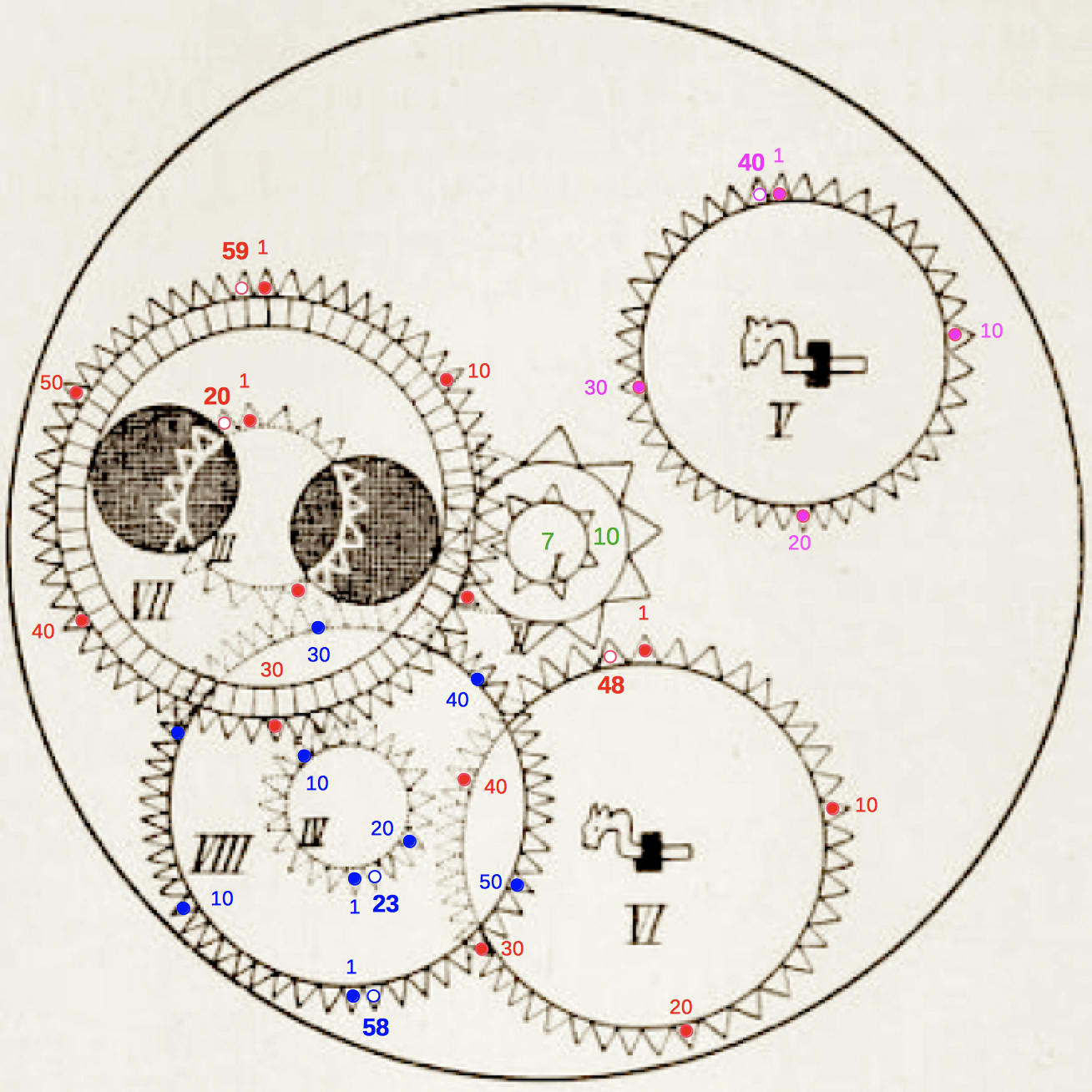

Counting the cogs of al-Biruni's drawing above:

wheel
I
II
III
IV
V
VI
VII
VIII
cogs 7 10 20 23 40 48 59 58

In his paper, Wiedemann mentions the drawing to be erroneous:

"Die hier mitgeteilte Figur 2 ist der Leydener Handschrift entnommen;
ihr entspricht diejenige in der Berliner Handschrift,
beide sind nicht ganz korrekt" (p. 8)

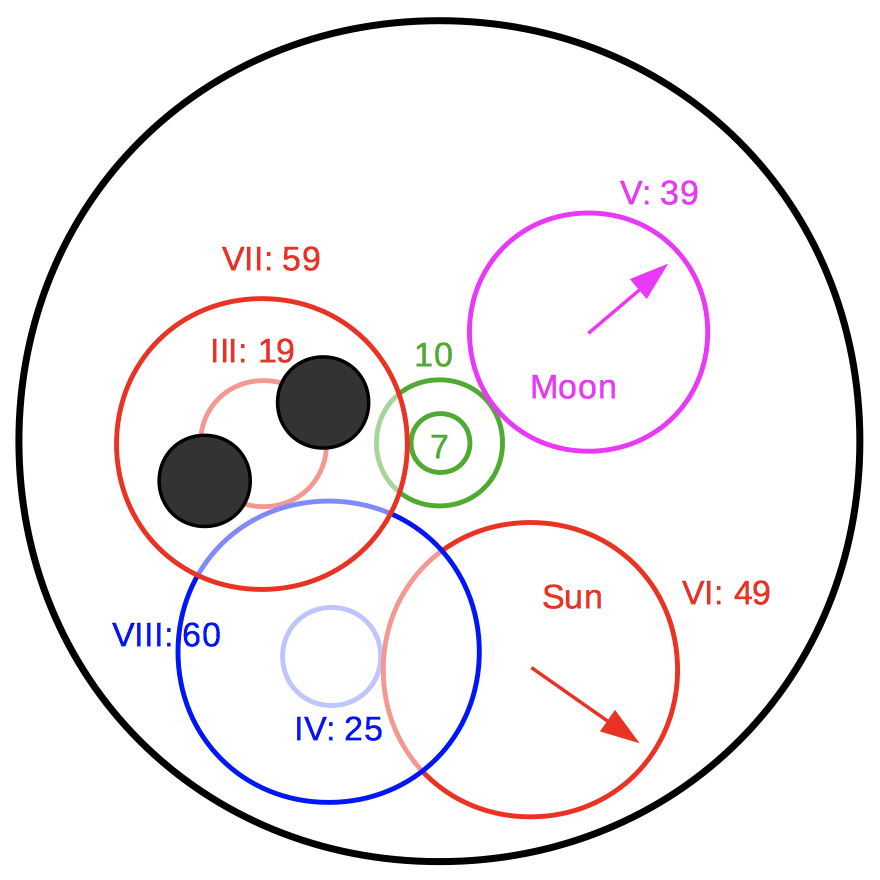

My applet is using these numbers of cogs:

wheel
I
II
III
IV
V
VI
VII
VIII
cogs 7 10 19 25 39 49 59 60

Al-Biruni Moon Box

The applet is also computing the apparent longitude of the Sun and the Moon, using algorithms of Jean Meeus,
taking into account the difference ∆T between Dynamical Time and Universal Time from MICA.
Comparing the applet's results and JPL ephemerides for the

Sun the mean absolute error is only 0.00004° = 0,15'',

Moon the mean absolute error is only 0.002° = 0,72''.

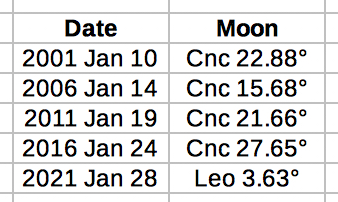

Selecting a date from the menu the position of the moon is set to the mean position of that date, remaining constant up to the next date:

moon
                  pean longitude

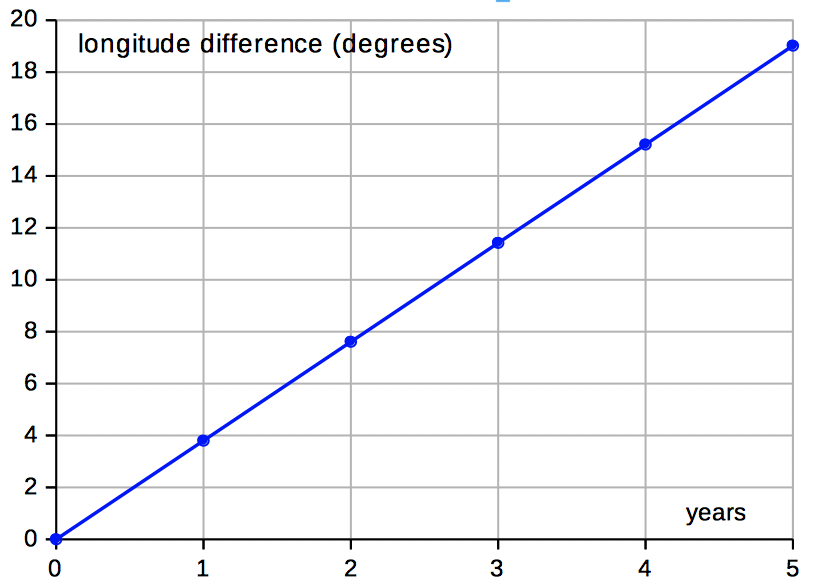

The applet's moon is moving by 13.187° per day, while the mean longitude increases by 13.176°. The difference goes up to 3.8° per year:

moon

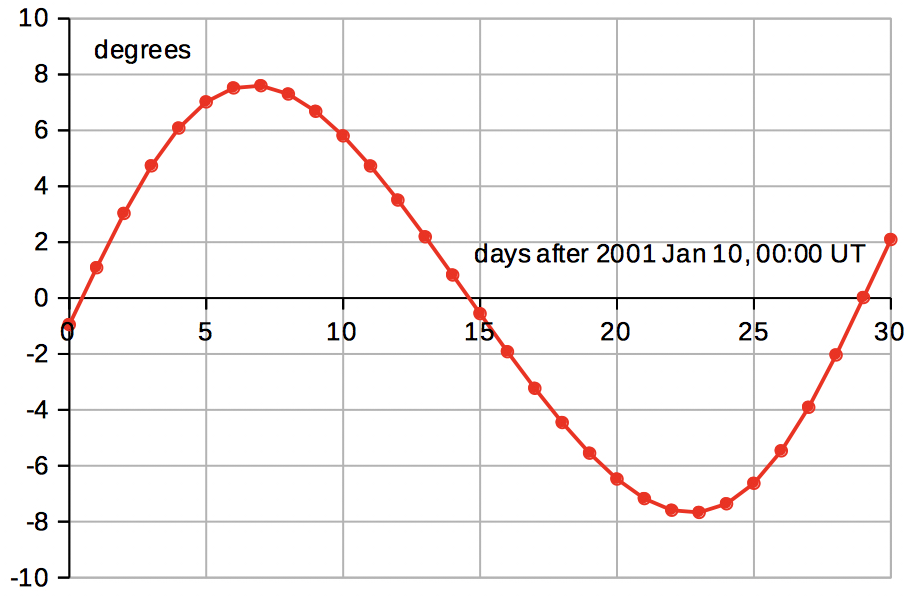

The next diagram is showing the difference between the mean and apparent longitude of the moon (as in the upper left corner of my applet):

mean
                  and apparent longitude of the moon
