Obliquity Applet

The obliquity of the ecliptic is the angle of inclination of the Earth's axis of rotation.

The mean obliquity of the ecliptic is calculated by a formula of Laskar (1986), given in Jean Meeus: "Astronomical Algorithms", p. 135. According to Meeus the accuracy is 0.01'' between AD 1000 and 3000, and a few seconds of arc after 10,000 years. The value of 2000, Jan 1 at 12 UT (Julian Day 2451545.0) is: 23.43929° = 23° 26' 21.448''



At present, the mean obliquity currently decreases by 0.0130° (46.8'') per century.
Near the year 12030 a minimum will be reached (22° 36' 41 '').
About the year -7530 there was a maximum inclination (24° 14' 07 '').

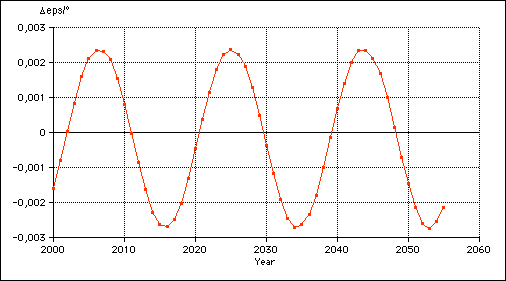

The true obliquity is taking into account the nutation of the Earth's axis: eps = eps0 + Δeps The nutation is a peridic oscillation of the rotational axis of the Earth around it's mean position. Nutation is due mainly to the action of the Moon. The most important term has a period of 18.6 years. Δeps is computed by a formula in Jean Meeus: "Astronomical Algorithms" (accuracy of 0.1'').

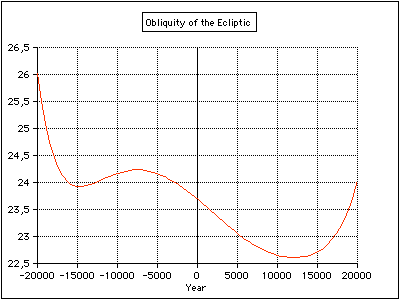

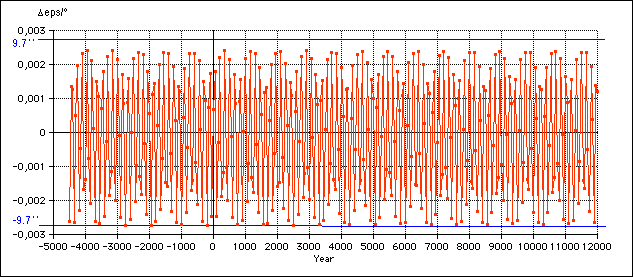

The results of my applet for a large period of time (-20,000 to +20,000):

Compare the results:
Precession and the Obliquity of the Ecliptik (Haluk Akcam, Jan. 01, 2004)
