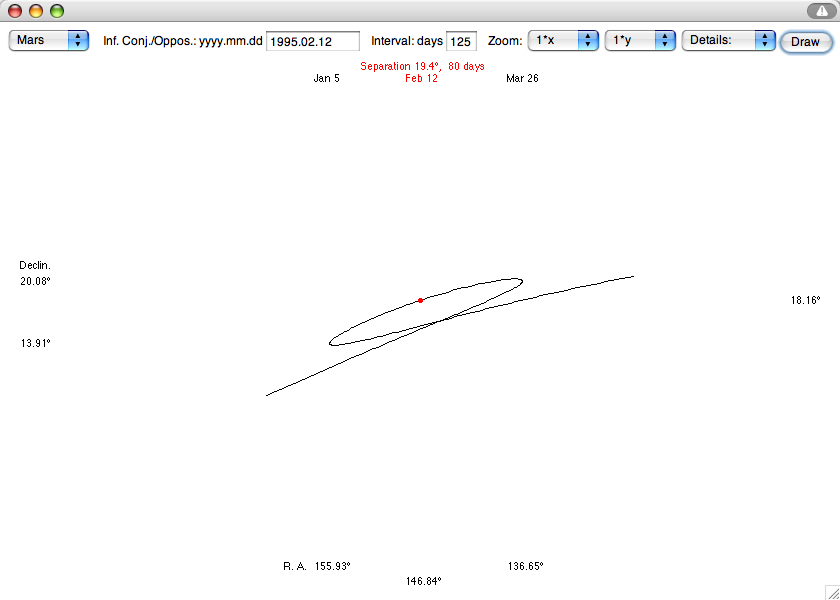

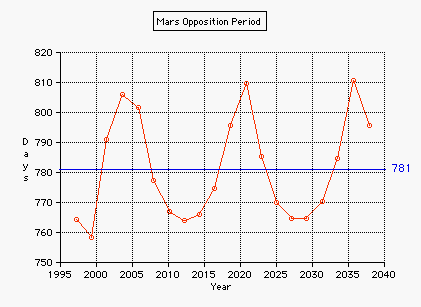

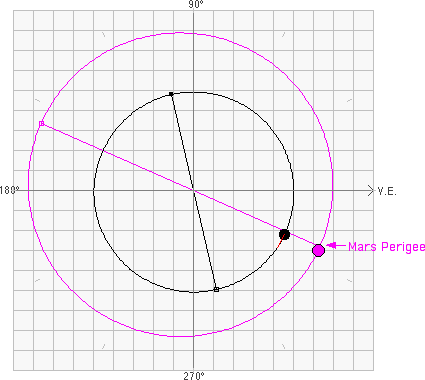

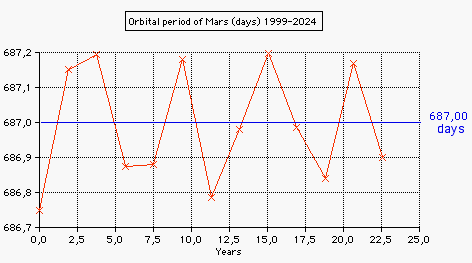

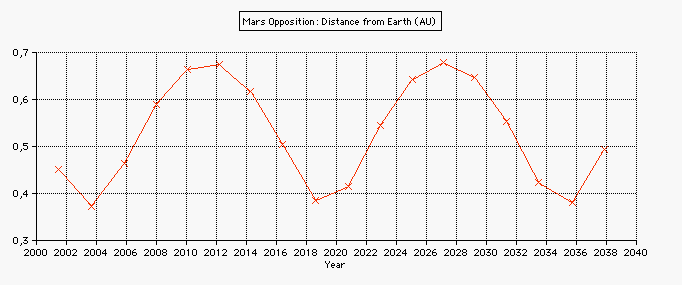

The shape
of the loops depends on the position of Mars with respect to the nodes
of Mars' orbit:

The

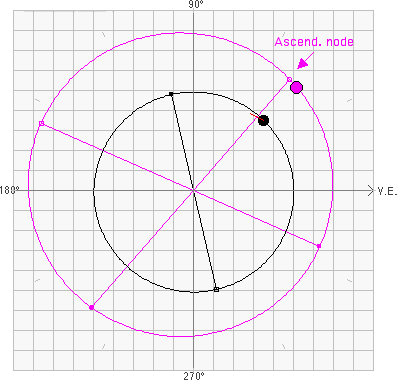

opposition of 2005, Nov 07 occuring near the ascending node (shape of "Z")

The

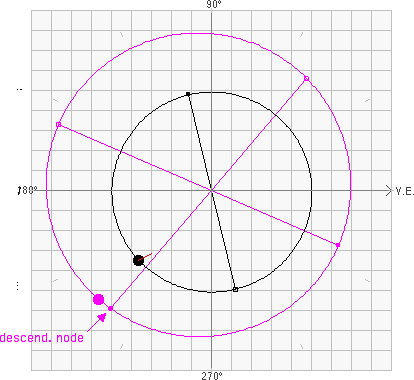

opposition of 2031, May 04 occuring near the descending node (shape of "S")

The

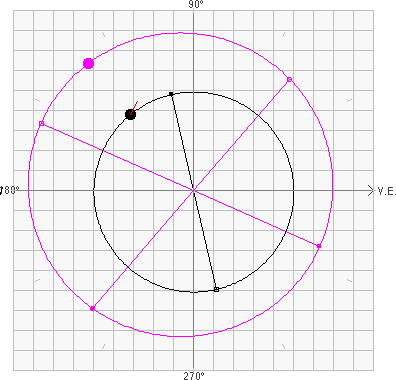

opposition of 2010, Jan 29 occuring half way between the nodes

The

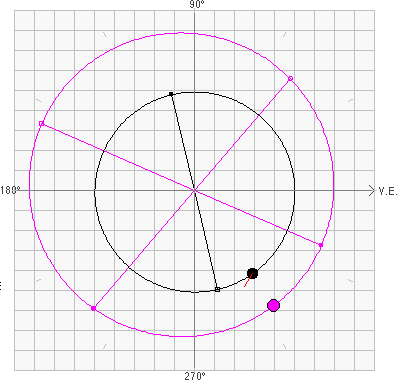

opposition of 2018, Jul 27 occuring half way between the nodes

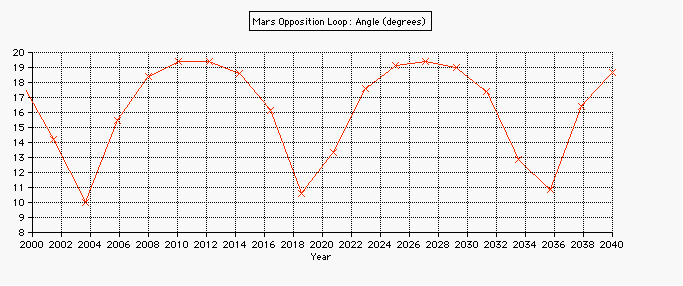

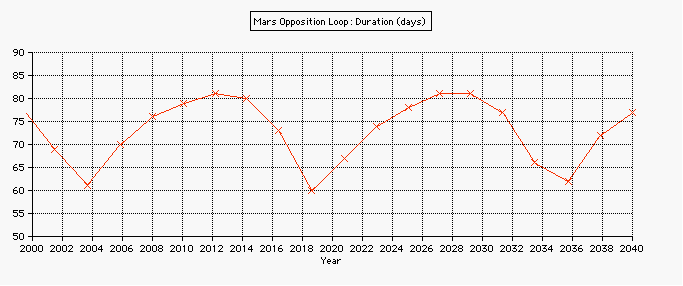

The first diagram is showing the angular distance (eta in degrees, vertical axis) of Mars from it's position at opposition as a function of time (days before and after opposition, horizontal axis). The second diagram is showing the angular velocity (∆eta/∆t in degrees per day, vertical axis) as a function of time (days before and after opposition, horizontal axis). The total duration of the oppostion loop is about 73 days, and the variation of eta is 0° +/ 8°

Both
diagrams are computed from r_{P} / r_{E} =
sin(η+ε)/sin(η+β), resolved to: η = arctan((sin ε  K*sin β)/(K*cos β  cos ε)), and K=r_{P}/r_{E}

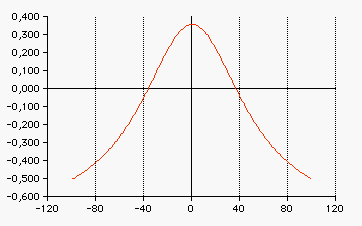

The first diagram is showing the angular velocity (∆eta/∆t in degrees per day, vertical axis) as a function of time (days before and after opposition, horizontal axis). The total duration of the oppostion loop is about 73 days, and the variation of eta is 0° +/ 8° The first diagram is showing the angular distance (eta in degrees, vertical axis) of Mars from it's position at opposition as a function of time (days before and after opposition, horizontal axis).

Both
diagrams are computed from r_{P} / r_{E} =
sin(η+ε)/sin(η+β), resolved to: η = arctan((sin ε  K*sin β)/(K*cos β  cos ε)), and K=r_{P}/r_{E}
