 Basics of Positional Astronomy

The observer is located at the centre of his "celestial sphere" with zenith Z above his head and the horizon N-E-S-W. The Sun, Moon or any other celestial body can be identified by the two coordinates altitude h and azimuth alpha (horizontal coordinates). Altitude is the angular distance above the horizon (0 < h < 90°), and azimuth the angular distance, measured along the horizon, westwards from the south point S (in astronomy) or eastwards from the north point N in nautics (0 < alpha <360°).

The daily movement of an object - resulting from the rotation of the Earth on its axis - starts when it rises at (1). At (2) it passes across the observer's meridian NZS (transit), and it sets at (3).

Only fixed stars (constant declination) reach the greatest altitude above horizon (culmination) on the meridian.

Details about the difference between transit and culmination

Please watch the Java applet Apparent Movement of a Star (on this server, with kind permission of Walter Fendt).

The horizontal coordinates of an object depend on the location of the observer on the Earth (and on time). In astronomy equatorial coordinates are commonly used when giving the position of an object on the celestial sphere. The equatorial system is based on the celestial equator, which is the great circle obtained by projecting the Earth's equator on to the celestial sphere, the equatorial plane being perpendicular to the Earth's axis of rotation.

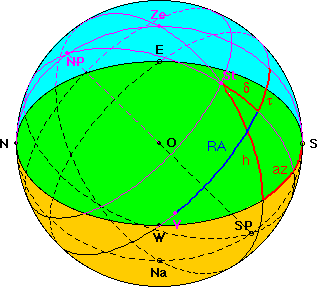

equatorial system

The first equatorial coordinate is declination delta, measured in degrees north and south of the celestial equator (N: 0° < delta < 90°, S: 0° > delta > - 90°. The second coordinate, may be the hour angle tau, measured along the equator from the meridian S-NP-N of the observer to the hour circle SP-St-NP of the star St. The hour angle corresponds to the length of sidereal time elapsed since the body St last made a transit of the meridian.
A screen shot of Walter Fendts applet
Apparent Movement of a Star shows the relationship of the two systems:


To convert equatorial coordinates hour angle (tau) and declination (delta) to horizontal coordinates azimuth (az) and altitude (h), the "nautical triangle" NP-Ze-St is used:

NP-Ze = 90° - beta (geogr. latitude beta)
NP-St = 90° - delta,
Ze-St = 90° - h.

From spherical trigonometry we get:

sin h = sin beta   sin delta   + cos beta   cos delta   cos tau

tan az = (- sin tau) / (cos beta   tan delta   -   sin beta   cos tau)

An observer O at geogr. latitude beta=50° N and longitude 10° E, on 1991/05/19 at 13:00 UT,
will see a star of right ascension RA=55.8° and declination delta=19.7°
at azimuth az=43.6° and altitude h=53.4°
(Sidereal time is 81.7°, hour angle is 25.9°)

Applet: Azimuth, Latitude, Hour Angle, Declination

The second equatorial coordinate may also be right ascension RA, measured in hours, minutes and seconds of time, taking into account the rotation of the celestial sphere once in 24 hours of sidereal time. The zero point for right ascension is taken as the northern vernal equinox.

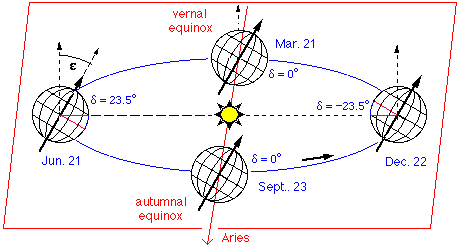

This is one of the two points at which the celestial equator intersects the ecliptic (the plane of the Earth's orbit around the Sun).

Right ascension RA, hour angle tau and sidereal time theta are related by:

tau = theta - RA

Animation: Sidereal Time and Solar Time



compute the position of the Sun on 1991/05/19 at 15:00 CEST
Berechnung des Sonnenstandes

2. Conversion of date and time:

local time to universal time UT

15 h CEST = 13 h UT

convert time:

Julian Day of 1991/ 5/19 at 13 UT

Julian day of 2000/01/01 at 12 UT

number of Julian days since 2000/01/01 at 12 UT

number of Julian centuries since 2000/01/01 at 12 UT
used by the algorithm for L


JD = 2448396.04167

JD = 2451545.0


T =
- 3148.95833/36525
= 0.086213780

2. Astronomical algorithms:

compute ecliptic longitude of the Sun

apparent longitude

latitude B is assumed to be zero

L = 58.06°

convert ecliptic longitude to right ascension RA and declination delta

RA = 55.81°
delta = 19.73

compute sidereal time (degree) at Greenwich

local sidereal time at longitude 10° E

local hour angle

theta0 = 71.698°

theta = theta0 + 10° = 81.698°

tau = theta - RA = 81.698° - 55.81° = 25.89°

3. Final results:

convert (tau, delta) to horizon coordinates (h, az) of the observer (50° N, 10° E)

The function atan2(numerator,denominator) should be used to avoid ambiguity.

altitude angle: h = 53.4 °

azimuth angle: az = 223. from N
azimuth angle: az = 223.6° - 180° =
43.6° from S

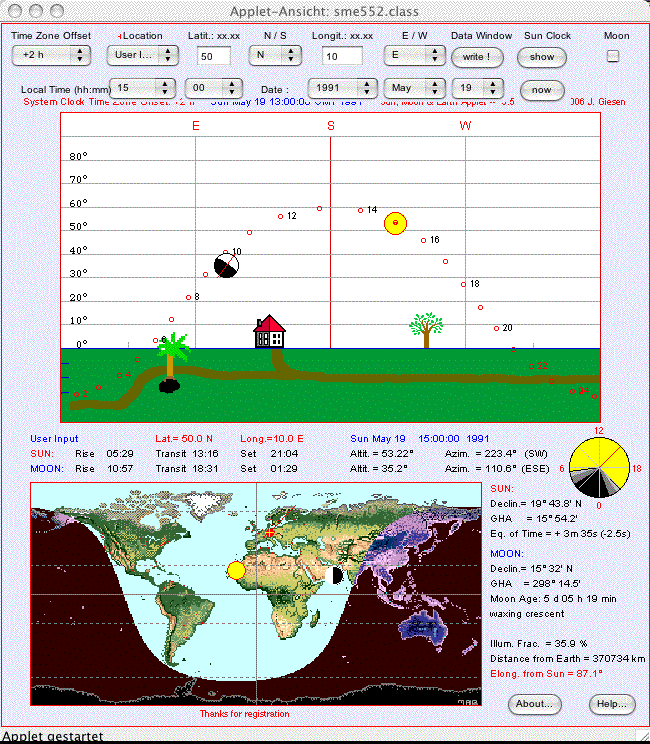

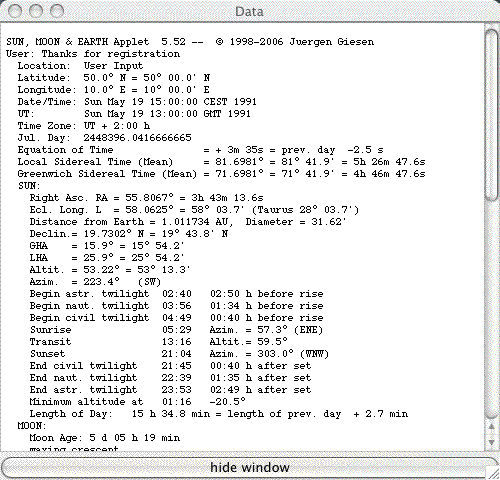

Please compare with results by my Sun, Moon & Earth Applet:
